Unipolar Hall Effect Switch Ics CYD9821B
Unipolar Hall Effect Switch Ics CYD9821B
Applications
- VCD/DVD loader, CD/DVD-Rom
- Cover detector
- Speed Measurement
- Home applications
- Home safety etc.
Features
-
2.5V to 18V operation voltage
- Built-in dynamic offset cancellation
- Small size
- High balance and low thermal drift of
- magnetic sensing
| Operating Temperature: | -40°C ~ +125°C |
| Max. Supply current/voltage: | 25 mA |
| Operation Point: | -12.0 mT ~ -9.0 mT |
| Release Point: | -11.0mT ~ -5.5mT |
| Hysteresis: | -3.5 mT ~ -1.0 mT |
| Power Supply: | 2.5V ~ 18V DC |

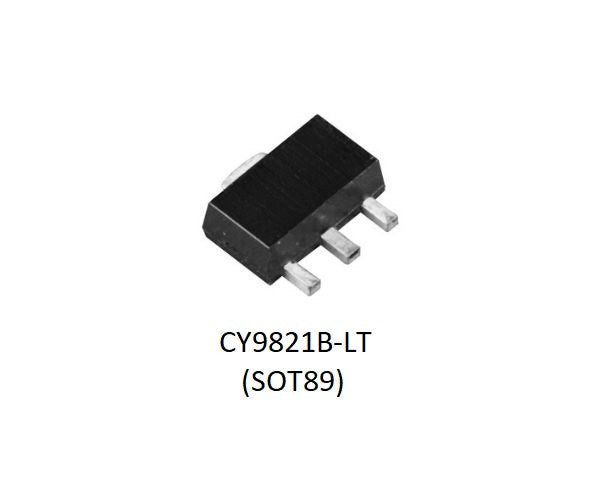

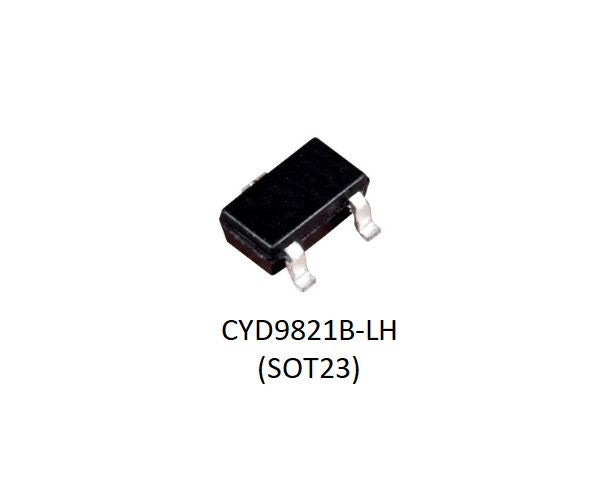

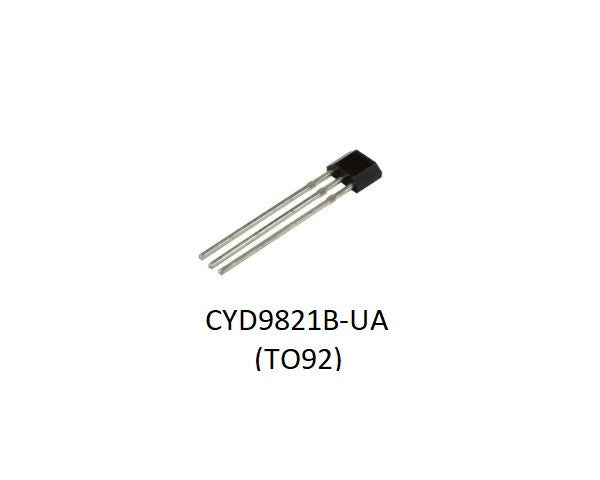

| Package/Size: | SOT23/2.9x1.8x1.1mm, SOT89/4.5x2.45x1.5mm, TO92/4.0x3.1x1.5mm |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 257410
