Unipolar Hall Effect Switch Ics CYD9821A
Unipolar Hall Effect Switch Ics CYD9821A
Characteristics
-
2.5V to 18V operation voltage
- Built-in dynamic offset cancellation
- Small size
- High balance and low thermal drift of magnetic sensing
Applications
-
VCD/DVD loader, CD/DVD-Rom
- Cover detector
- Speed Measurement
- Home applications
- Home safety etc.
| Operating Temperature: | -40°C ~ +125°C |
| Max. Supply current/voltage: | 25 mA |
| Operation Point: | 9.0 mT ~ 12.0 mT |
| Release Point: | 5.5 mT ~ 11.0 mT |
| Hysteresis: | 1.0 mT ~ 3.5 mT |
| Power Supply: | 2.5V ~ 18V DC |

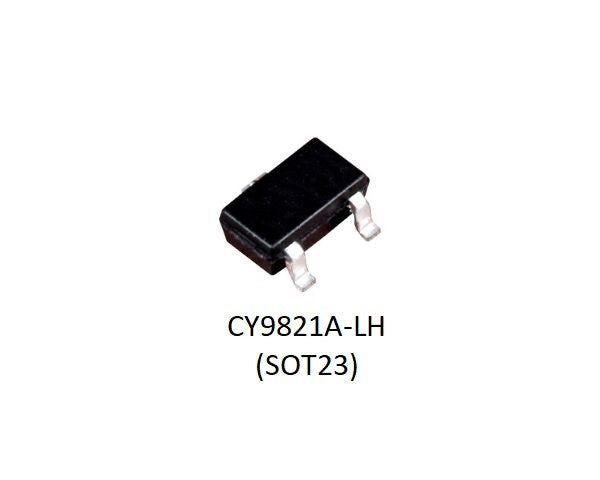

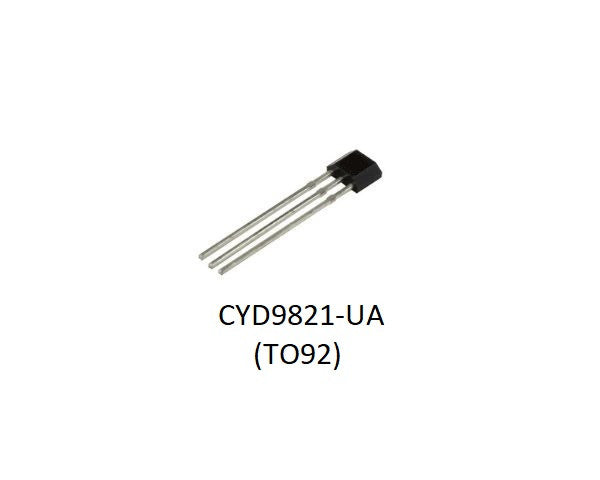

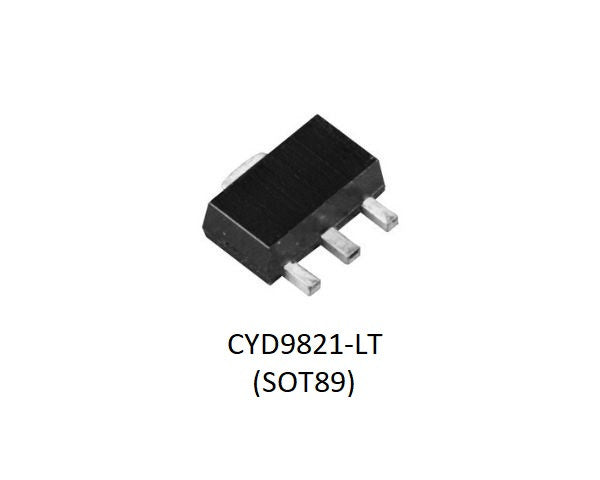

| Package/Size: | SOT23/2.9x1.8x1.1mm, SOT89/4.5x2.45x1.5mm, TO92/4.0x3.1x1.5mm |
