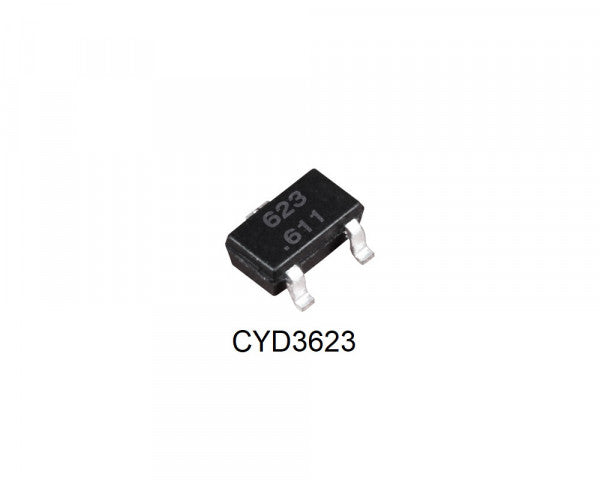

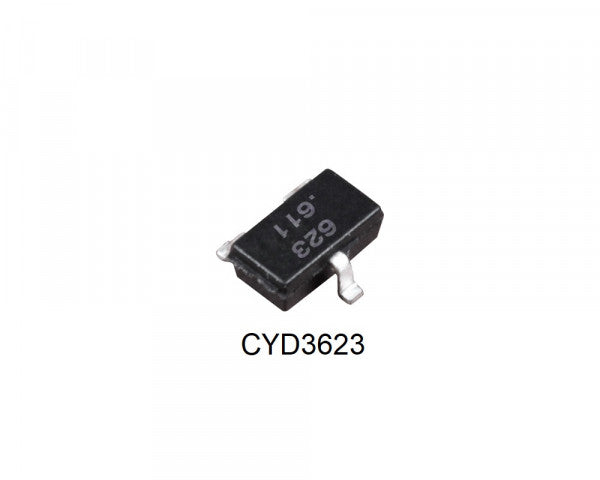

Unipolar Hall Effect Switch Ics CYD3623-S
Unipolar Hall Effect Switch Ics CYD3623-S
Characteristics
-
2.5V to 18V operation voltage
- Built-in dynamic offset cancellation
- Small size
- High balance and low thermal drift of magnetic sensing
Application
- VCD/DVD loader
- Cover detector
- Speed Measurement
- Home applications
- Home safety etc
| Operating Temperature: | -40°C ~ +125°C |
| Max. Supply current/voltage: | 25 mA |
| Operation Point: | 10.0 mT ~ 11.0 mT |
| Release Point: | 7.0 mT ~ 10.0 mT |
| Hysteresis: | 1.0 mT ~ 3.0 mT |
| Power Supply: | 2.5V ~ 18V DC |
| Package/Size: | SOT23/2.9x1.8x1.1mm |
