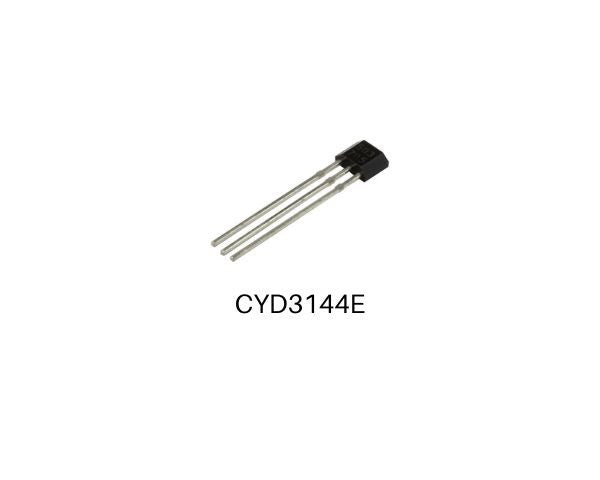

Unipolar Hall Effect Switch Ics CYD3144E
Unipolar Hall Effect Switch Ics CYD3144E
CYD3141E Hall-effect switch integrated circuits is based on the semiconductor monolithic technology, which includes a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output on a single silicon chip. ICs can convert the input magnetic field signal into digital voltage output.
Characteristics
-
Small size
- High Sensitivity
- Quick Response
- Good Temperature Performance
- High Accuracy
- Excellent Reliability
Application
- Non-contact Switch
- Automotive Ignition
- Brake ICs
- Position control
- Revolution detection
- Safe alarm device
- Textile control system
| Operating Temperature: | -40°C ~ +85°C |
| Power Supply: | 4.5V ~ 24V DC |
| Package/Size: | TO92/4.06x3.1x1.5mm |
| Max. Supply current/voltage: | 9 mA |
| Operation Point: | 5.0 mT ~ 20.0 mT |
| Release Point: | 1.0 mT ~ 14.0 mT |
| Hysteresis: | 2.0 mT ~ 8.0 mT |
