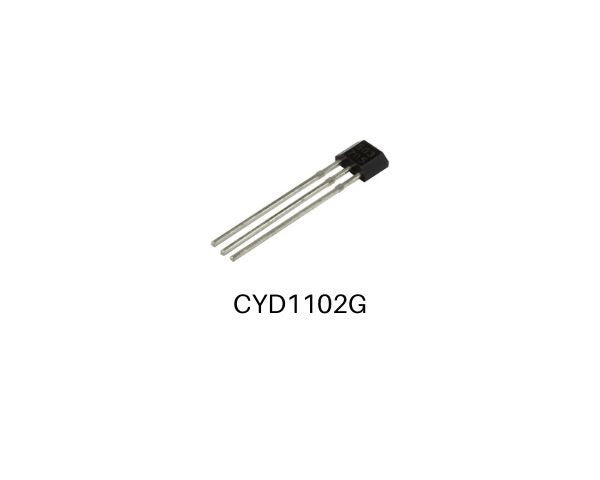

Unipolar Hall Effect Switch Ics CYD1102G
Unipolar Hall Effect Switch Ics CYD1102G
The CYD1102G is an integrated Hall Effect sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal band gap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range. A north pole of sufficient strength will turn the output ON. In the absence of a magnetic field, the output is OFF.
Characteristics
- Wide operating voltage range 3V to 28V
- Maximum output sink current 50mA
- Open collector pre-driver
- Reverse polarity protection
- Package : SIP-3L
| Operating Temperature: | -40°C~ +150°C |
| Package/Size: | SIP3L/4.1x3.05x1.50mm |
| Max. Supply current/voltage: | 10 mA |
| Operation Point: | 14 mT |
| Release Point: | 6.0 mT |
| Hysteresis: | 3.0 mT ~ 12.0 mT |
| Power Supply: | 3.0V ~ 28V DC |
