DC Leakage Current Sensor CYCT04-xnE4 with Current Output
€71,82 EUR

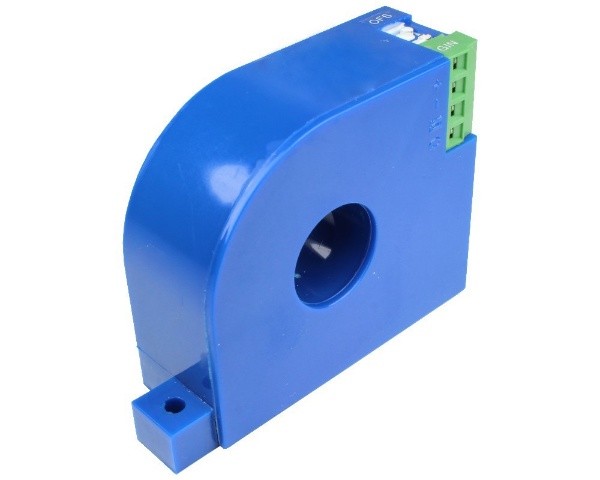

DC Leakage Current Sensor CYCT04-xnE4
This Leakage Sensor is based on magnetic modulation principle and can be used for measurement of DC currents.
Product Characteristics:
- Application of Ageing Technology
- 100% Ageing Processing and Thermal Drift Test under high operating temperature in order to guarantee the long term stability of the sensors
- Custom makeable according to individual requirements
- Various current and voltage outputs are selectable
- Power supply options: +12V, +15V, +24V, ±12VDC and ±15VDC
- Sensors with window for contactless measurement
Applications:
- Isolation Monitoring of DC power systems and cable selection systems,
- Isolation measurement of small DC currents and leakage currents etc.
| Rated Input Current/Voltage | 0-10 mA, 0-20 mA, 0-50 mA, 0-100 mA, 0-200 mA, 0-500 mA, 0-1 A, 0-2 A, 0-5 A, 0-10 A |
| Output Signal | 0-20 mA DC, 4-20 mA DC |
| Power Supply | +12 V DC, +15 V DC, +24 V DC, ±12 V DC, ±15 V DC |
| Operating Temperature | -10°C ~ +80°C |
| Accuracy | 1% |
| Current Type | DC |
| Window Type | Round |
| Window Size (mm) | Ø 21 |
| Direction | Unidirectional, Bidirectional |
| Response Time | ≤120 ms |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
