AC/DC Spannungssensor CYVS-xnS0 with DC Current Output

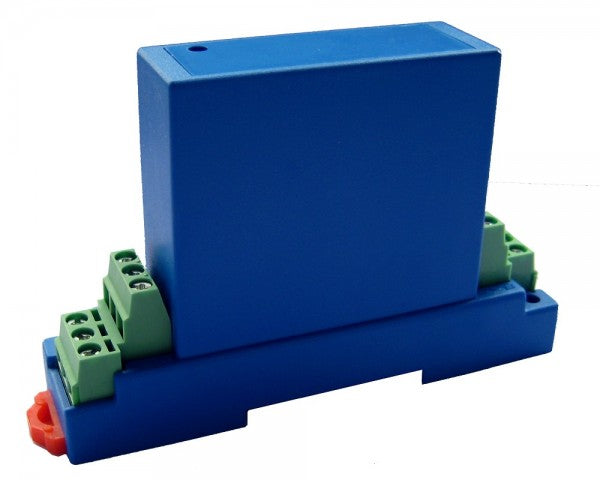

AC/DC Voltage Sensor CYVS-xnS0
The CYVS-xnS0 AC/DC voltage sensor/transducer works according to Linear Photoelectrical Isolation and is designed for applications to measurement and monitoring of AC/DC voltage and DC impulse voltage. The output voltage of this transducer is proportional to the input voltage. They are suitable for measurements and long time monitoring of AC/DC voltages and can applied to power supply management, motor drivers, battery chargers and systems etc.
| Nominal Input Current | 0-300 V AC/DC, 0-100 V AC/DC, 0-50 V AC/DC, 0-5 V AC/DC, 0-1 V AC/DC, 0-500 mV AC/DC, 0-100 mV AC/DC, 0-50 mV AC/DC, 0-500 V AC/DC |
| Output Signal | 0-20mA, 4-20mADC |
| Power Supply | +12 V DC, +24 V DC |
| Operating Temperature | -10°C ~ +60°C |
| Accuracy | 0.5% |
| Current Type | AC/DC |
| Isolation Voltage | 1.5 kV DC, 1 min |
| Thermal Drift | 250-300 ppm/°C |
| Response Time | ≤250 ms |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
