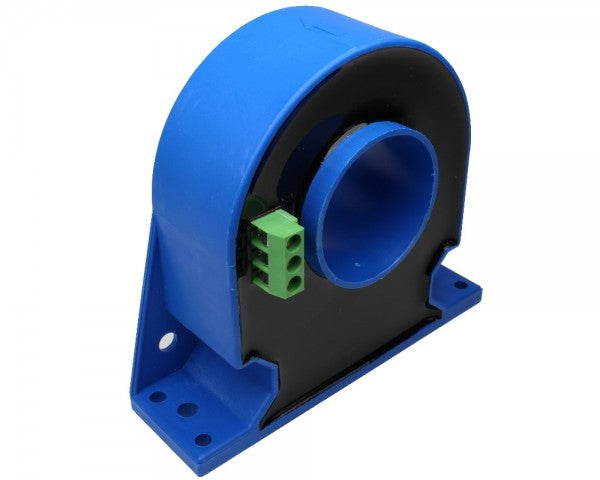

Hall-Effekt-AC/DC-Stromsensor mit geschlossenem Regelkreis CYHCS-D6
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D6
This Hall Effect current sensor is based on closed loop compensating principle and designed with a high galvanic isolation between primary and secondary circuits. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Characteristics:
- Excellent accuracy
- Very good linearity
- Small size and encapsulated
- Less power consumption
- Good current overload capability
Applications:
- Photovoltaic equipment
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies
- Switched Mode Power Supplies
| Nominal Input Current | 0-300 A, 0-500 A |
| Output Signal | ±100 mA AC/DC |
| Power Supply | ±15 V ~ ±24 V DC |
| Operating Temperature | -25°C ~ +85°C |
| Accuracy | 0.5% |
| Linearity | 0.1% |
| Frequency Bandwidth | DC ~ 100 kHz |
| Sensor Type | Closed Loop |
| Current Type | AC/DC |
| Window Type | Round |
| Window Size (mm) | Ø 35 |
| Direction | Bidirectional |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
