Gleichspannungssensor CYVT01-xnS1 mit Spannungsausgang

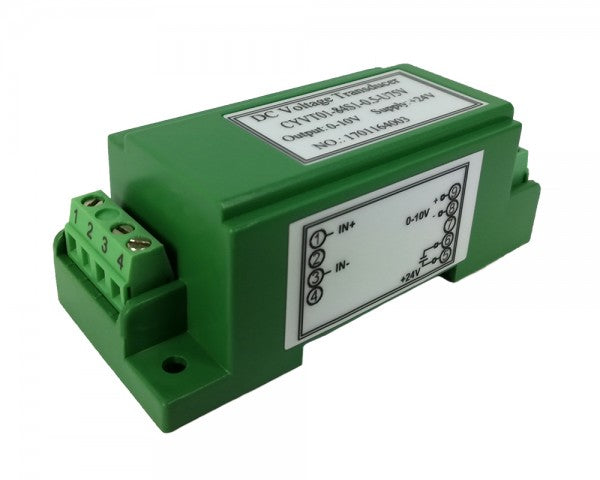

DC Voltage Sensor CYVT01-xnS1
The CYVT01-xnS1 DC voltage sensor/transducer works according Linear Photoelectrical Isolation and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long time monitoring of DC voltages and can applied to power supply management, DC motor drivers, battery chargers and systems etc.
| Nominal Input Current | 0-5 V, 0-10 mV DC, 0-50 mV DC, 0-75 mV DC, 0-1 V DC, 0-10 V DC, 0-50 V DC, 0-75 V DC, 0-100 V DC, 0-200 V DC, 0-500 V DC, 0-600 V DC, 0-700 V DC, 0-800 V DC, 0-900 V DC, 0-1000 V DC |
| Output Signal | 0-5 V DC, 0-10 V DC |
| Power Supply | +12 V DC, +15 V DC, +24 V DC |
| Operating Temperature | -10°C ~ +60°C |
| Accuracy | 0.5% |
| Current Type | DC |
| Direction | Unidirectional, Bidirectional |
| Isolation Voltage | 2.5 kV DC, 1 min |
| Response Time | ≤400 ms |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
