Gleichspannungssensor CYVT02-xnU0 mit Spannungsausgang

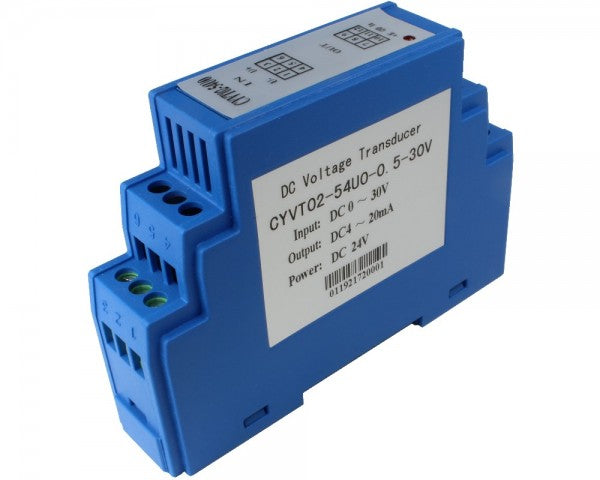

DC Voltage Sensor CYVT02-xnU0
The CYVT02-xnU0 DC voltage sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long time monitoring of DC voltages and can applied to power supply management, DC motor drivers, battery chargers and systems etc.
| Nominal Input Current | 0-10 mV DC, 0-20 mV DC, 0-50 mV DC, 0-100 mV DC, 0-200 mV DC, 0-500 mV DC, 0-1 V DC, 0-2 V DC, 0-5 V DC, 0-10 V DC, 0-20 V DC, 0-50 V DC, 0-100 V DC, 0-200 V DC, 0-500 V DC, 0-1000 V DC |
| Output Signal | 0-5 V DC, 0-10 V DC |
| Power Supply | +12 V DC, +24 V DC |
| Operating Temperature | -10°C ~ +60°C |
| Accuracy | 0.2%, 0.5% |
| Current Type | DC |
| Direction | Unidirectional |
| Isolation Voltage | 2.5 kV DC, 1 min |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
