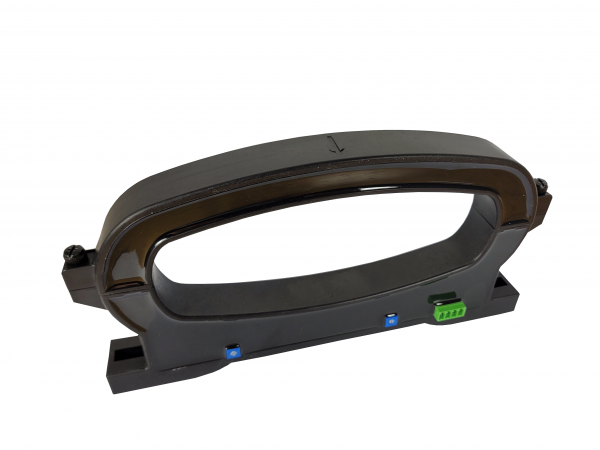

DC-Stromsensor mit geteiltem Kern CYHCT-L65K mit Stromausgang
€157,88 EUR
DC Current Sensor with Split Core CYHCT-L65K
Features and Advantages
- DC current measurement
- Output signal option (4-20mA, 0-5V, 0-10V….)
- High isolation between primary and secondary circuits
- Split Core, easy installation
- Protection against overvoltage
- Protection against reversed polarity
- Output protection against electrical disturbances
Applications
- Photovoltaic equipment
- Battery banks, such as, monitoring load current and charge current, verifying operation
- Transportation, measuring traction power or auxiliary loads
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
| Nominal Input Current | 0-300A, 0-400A, 0-500A, 0-600A, 0-700A, 0-800A, 0-1000A, 0-2000A, 0-3000A, 0-4000A, 0-5000A, 0-6000A |
| Output Signal | 0-20 mA DC, 4-20 mA DC |
| Power Supply | +12 V DC, +15 V DC, +24 V DC, ±12 V DC, ±15 V DC |
| Operating Temperature | -40°C ~ +85°C |
| Accuracy | 0.5%, 1% |
| Linearity | ±0.5%, ±0.2% |
| Frequency Bandwidth | DC – 8 kHz |
| Sensor Type | Open-Loop |
| Current Type | AC |
Data sheets:
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
